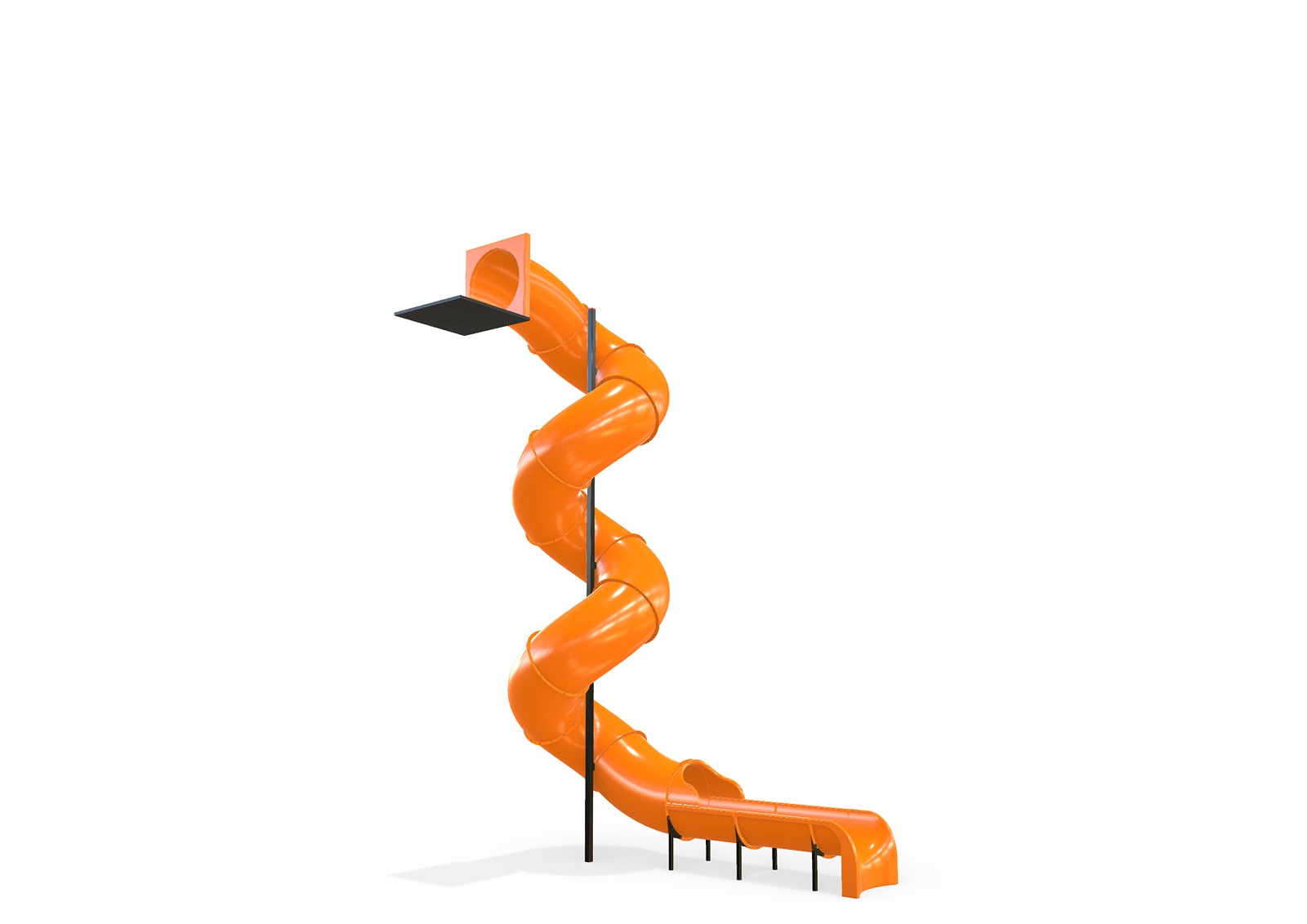

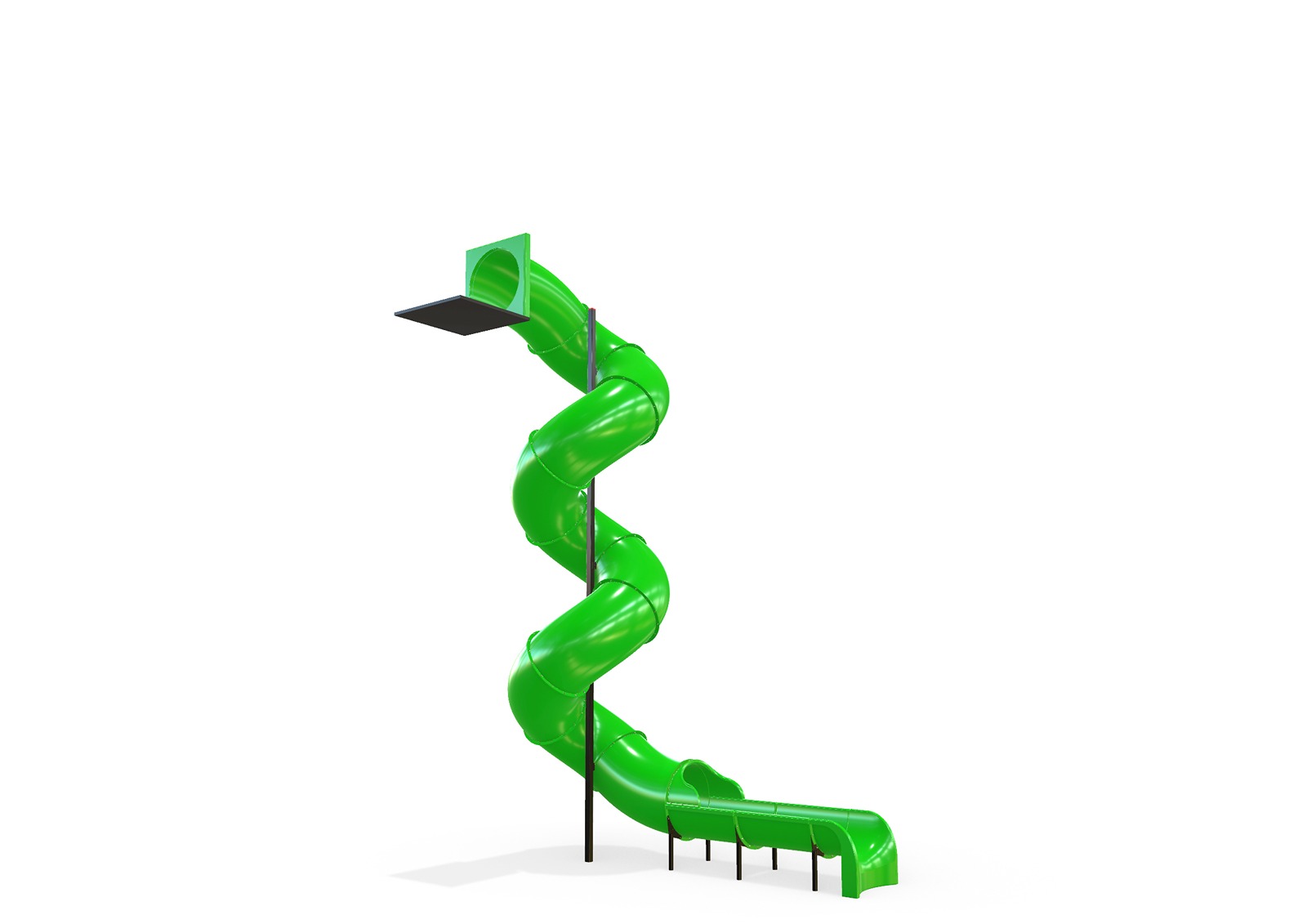

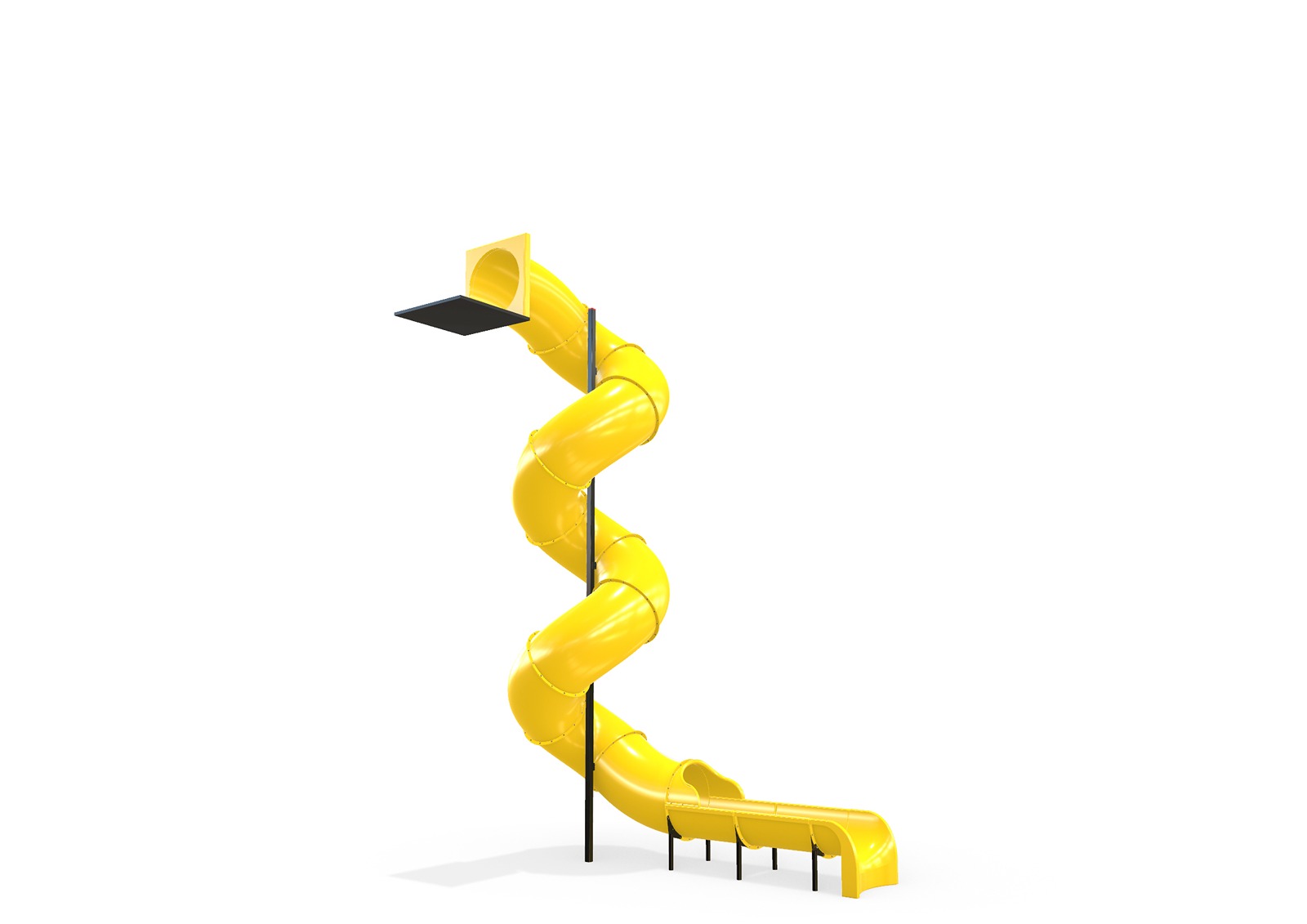

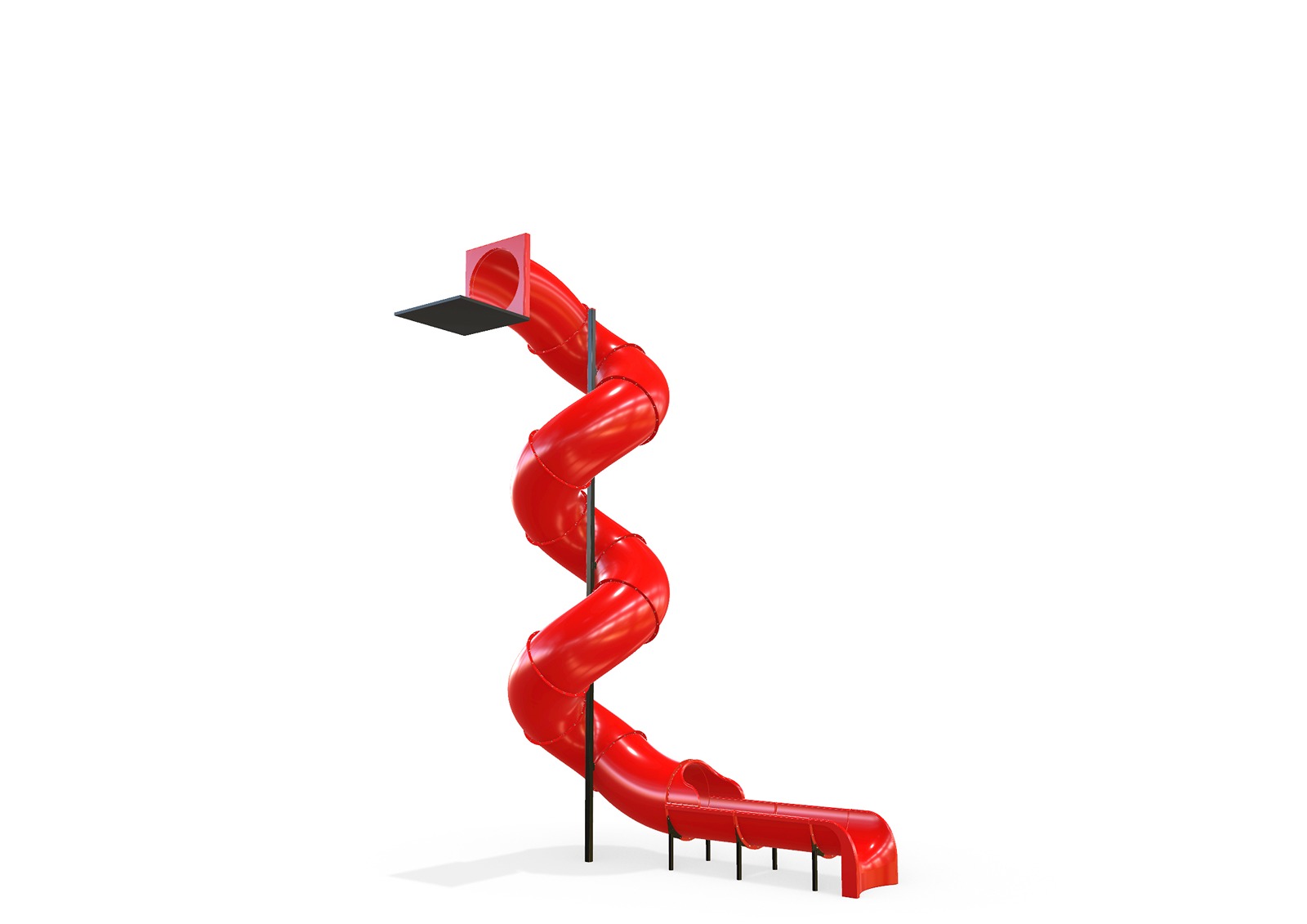

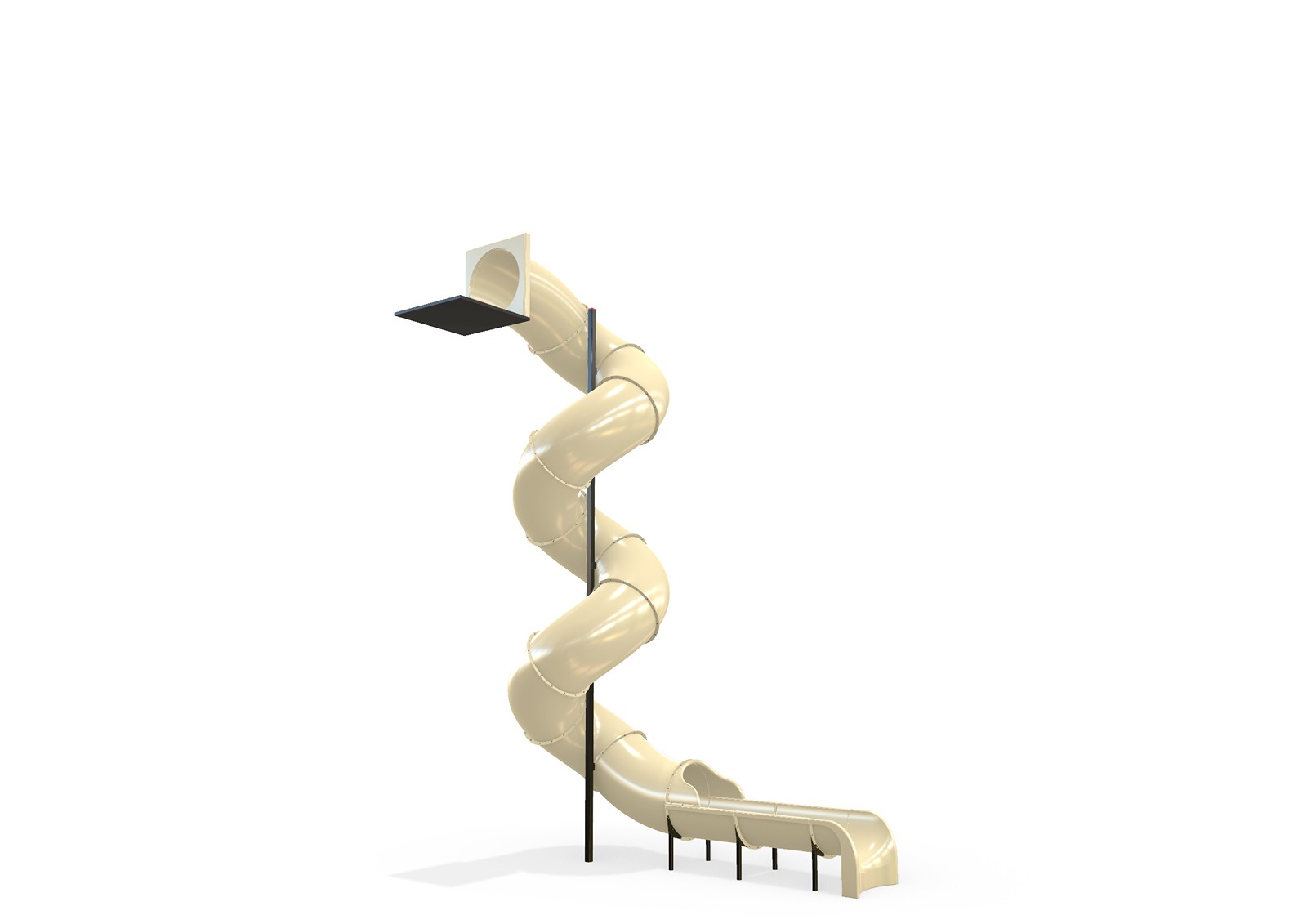

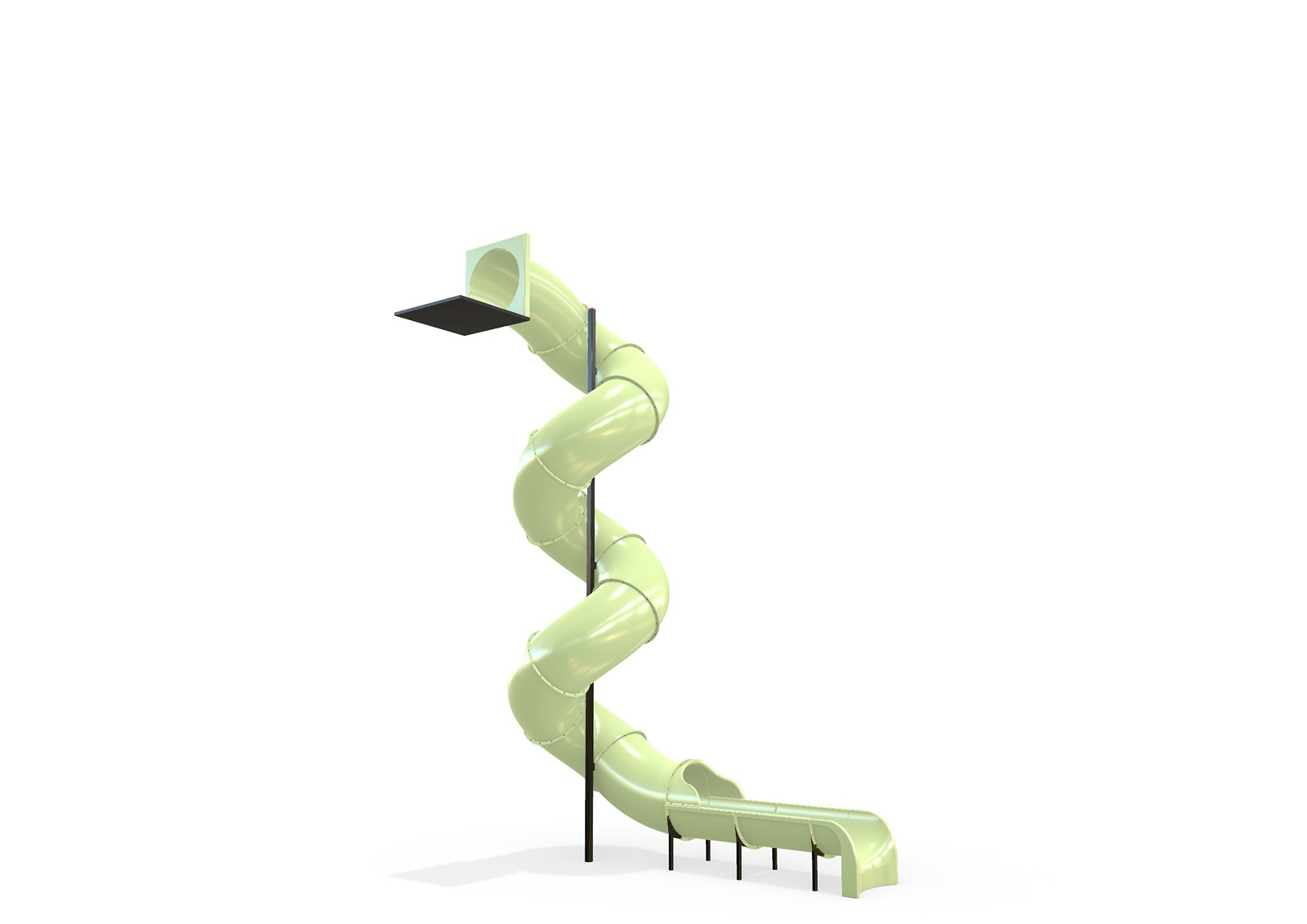

Helix Slide for 5750mm Deck
Helix Slide for 5750mm Deck
HLX009
| Component | SKU | Quantity |
| Helix Transition (35 Degree) | PLO212 | 2 |
| Helix Right | PLO213 | 9 |
| 850mm Exit Tube Half | PLO214 | 2 |
| Exit Canopy | PLO215 | 1 |
| Exit Runout | PLO216 | 1 |
| Hole Panel | PLO301 | 1 |
| Support Post Assembly - 750mm Long | PST005 | 6 |
| Hardware Set for Tube to Tube Connection | HDW001 | 13 |
| Hardware Set for Tube to Hole Panel Connection | HDW002 | 1 |
| Helix Support Bracket | BKT00002 | 4 |
| OPTION: In Ground Mounting | ||
| All Thread | ALLTHREAD | 6 |
| OPTION: On Ground Mounting | ||
| Surface Mount Clamp for Support Leg | CLP001 | 6 |
6100mm Centre Support Post Required (not supplied)
Go West recommends supports from Centre Support Post back to play structure
Colour Range:
Orange 61
Flame Red 551
Magenta 526
Purple 538
French Blue 326
Plasmo Green 209
Teal 338
Caulfield Green 208
Beige 916
Mist Green 206
Light Grey 817
Black 70
